Features
When the U.S. Army envisioned an improved litter, North American Rescue built it. Talon® II 90C, the most compact & versatile litter on the market, allows casualty transport in restricted compartments. By extending the ergonomically designed handles, the Talon® becomes a standard NATO-compatible evacuation platform. Already the U.S. Marine Corps official battlefield litter, the Talon® 90C is today’s ultimate TACEVAC solution.
Special Features
- Certified Safe-to-Fly U.S. Army Rotary Wing
- Retractable, ergonomically designed handles
- Automatic locking hinges
- Slip-resistant, chemical-resistant ripstop fabric tested & approved by Federal & private labs using live warfare agents
- 6 IV-attachment points
- 2 patient-securing straps
- U.S. Patents 6,842,923 & 5,598,592, Patent(s) Pending
Product of North American Rescue
Specification
Product Information
| Item code | SEL#: 09ME-05-LITR |
Technical Information

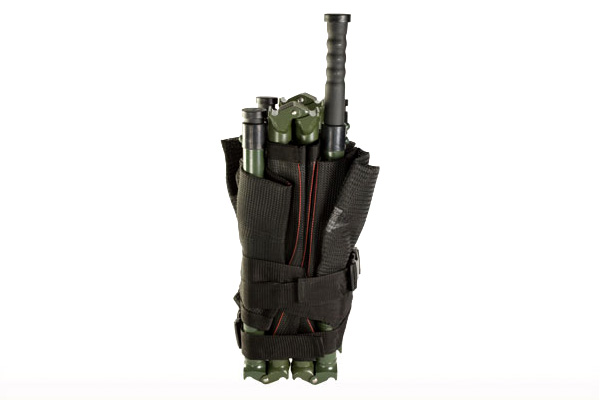

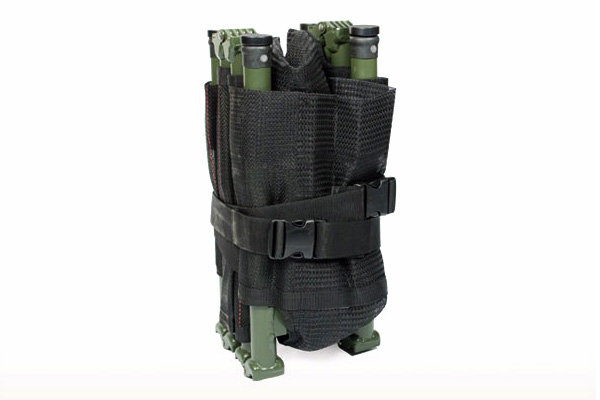

| Folded with handles collapsed: | H 20.5 in. x W 8.5 in. x D 9.5 in. |
| Open with handles collapsed: | L 78 in. x W 22.5 in. x D 6 in. |

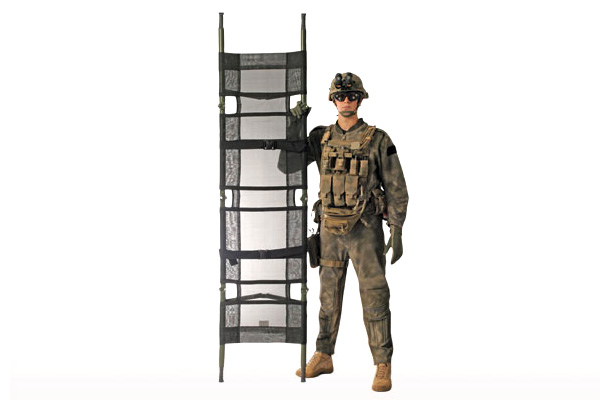

| Open with handles extended: | L 90 in. x W 22.5 in. x D 6 in. |
| Weight: | 16 lb 6 oz (7.4 kg) |
| Payload: | 1200 lb (544.3 kg) |
| Ground Clearance: | 1.5 in. |
Extras
| Back Rest (optional): | 90/45 degree angles View Talon® Back Rest |
| 33 in. Litter Stands (optional): | 33 in. Litter Stands View 33 in. Litter Stands |
*Specifications are subject to change without prior notice.

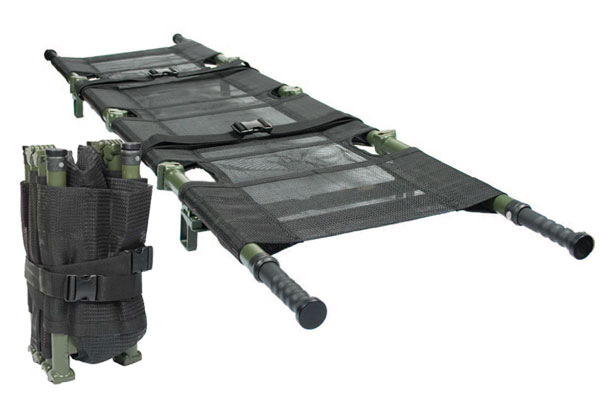

Talon II 90C Quad Fold Stretcher
